NEW GAPSuk 520H – 52cm Hydraulic Paper Cutter Guillotine
A solid built electric paper cutting guillotine with a 520mm cutting width, 9 programmes with digital display and an independent hydraulic power clamp.

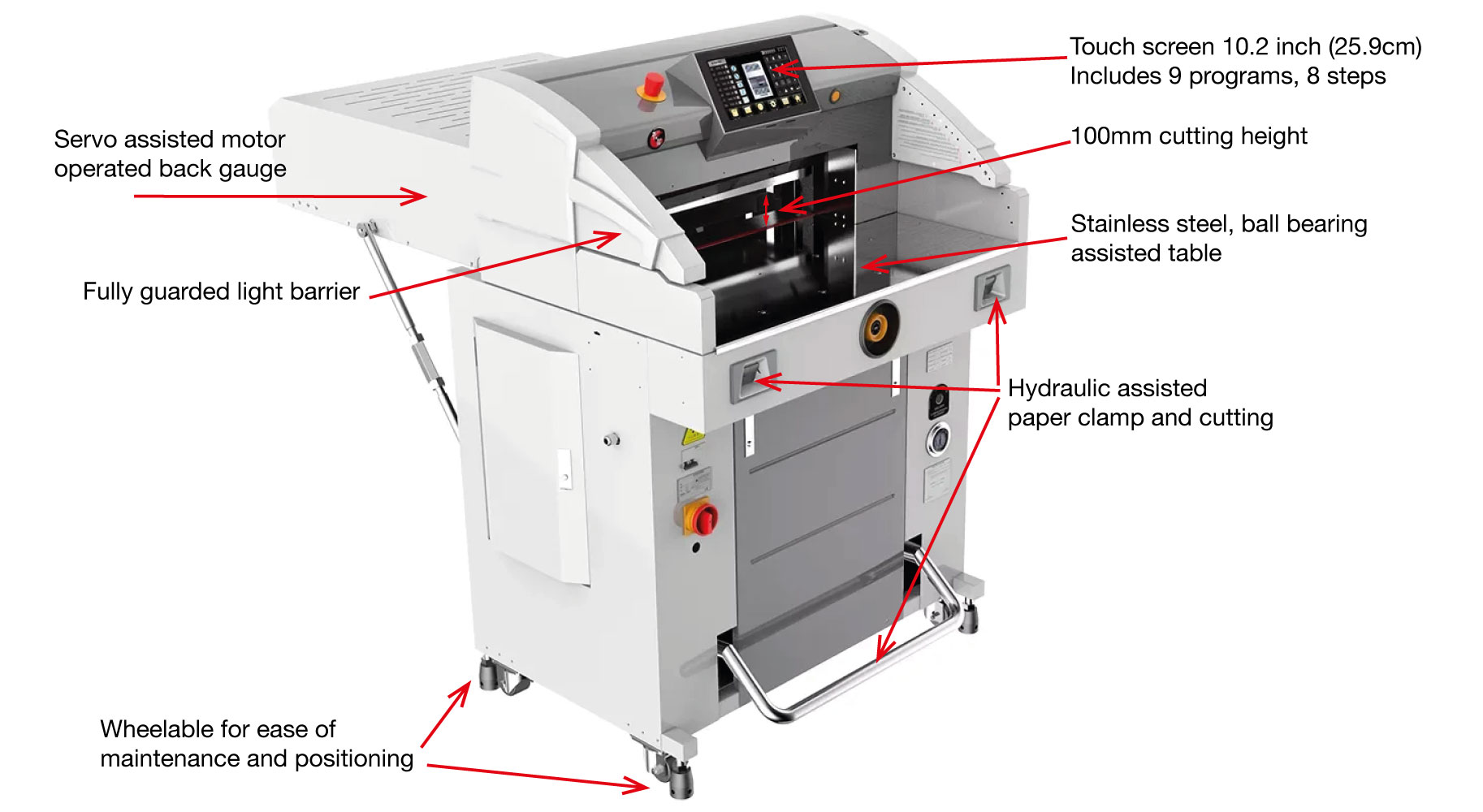

Some of the enhanced features include:
- A large 100mm cutting height
- A large 10.2 inch (25.9cm) touch screen
- Ball bearing assisted table for ease of paper stack manoeuvrability
- Hydraulic assisted paper clamp and cutting
- Roller bearing assisted paper clamp
- A servo assisted motor operating the back gauge
Additional Features
- Fully guarded light barrier
- 52cm cutting width – 100mm cutting height
- Foot/Button operated paper clamp
- Digital display and keyboard
- 9 programs, 8 steps
- Precision welded and machined frame
- Simple blade changing
- Adjustable cutting depth
- Fast advance and return of backguage facility
- Left and right side lays
- Illuminated cutting line
- Cutting tolerance within 0.1 mm
- Polished stainless steel, bearing assisted front paper bed
- Wheelable, for ease of maintenance and positioning
- Extra width side tables can be added as an option
W: 1440mm | H: 800mm | D: 1430mm
Weight: 420kg
Power: 220V | 2000W
