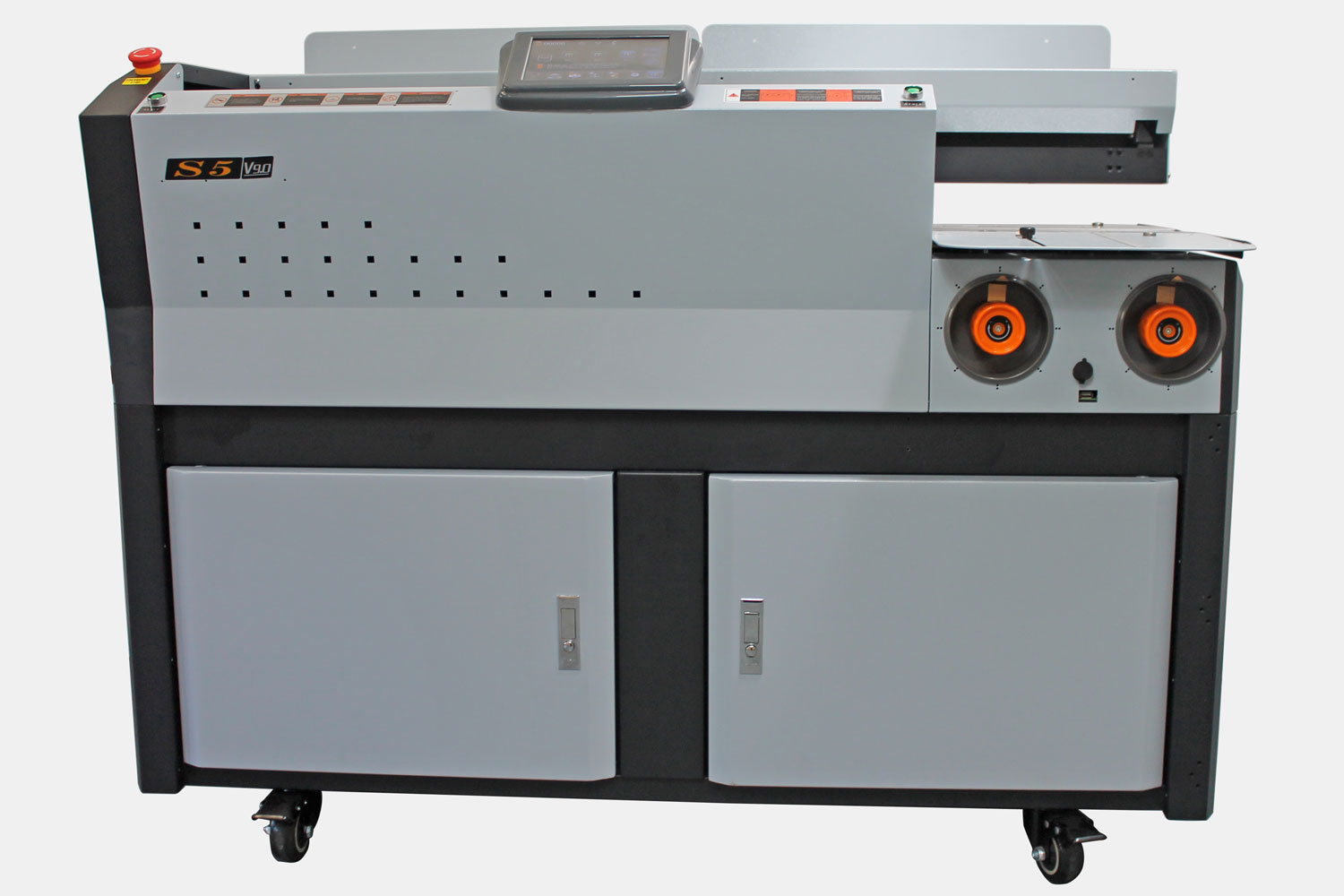

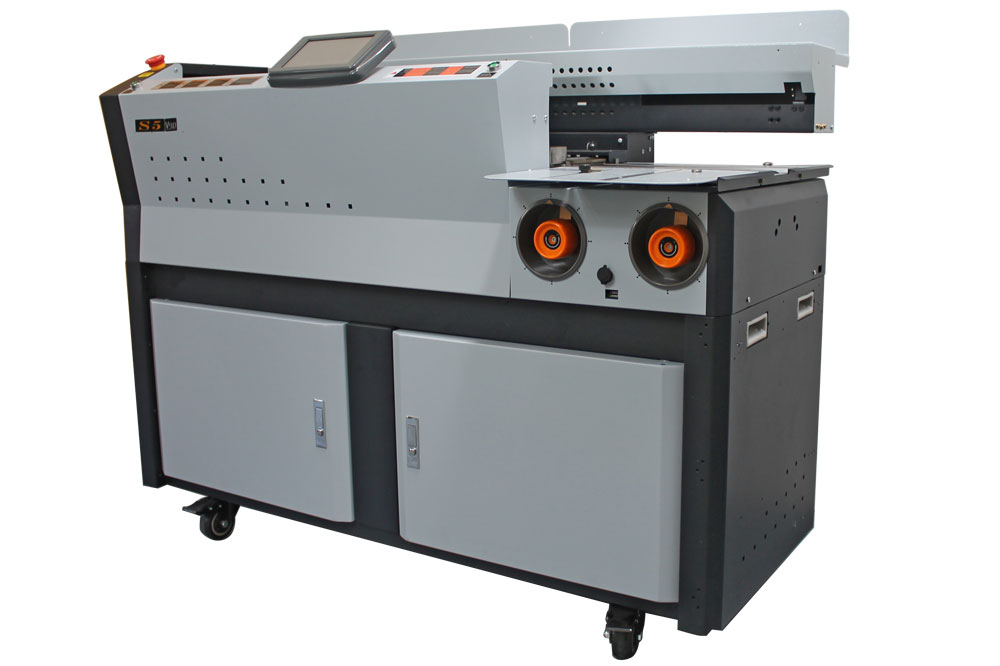

Perfect Binding Machine
£2,795.00
For use with Thermal PVA Glue & Planamelt Glue
Ex VAT: £2,795.00
TOTAL: £2,905.00 plus VAT
1 in stock
The Perfect Binding Machine is a high-performance tool for producing high-quality, professional bound books with ease. Designed for use with Thermal PVA Glue and Planamelt Glue, it delivers superior adhesion, durability, and efficiency. The machine offers advanced features that make it perfect for short-run printing, bookbinding, and digital print shops. With an easy-to-use touchscreen interface and multiple operating modes, the Perfect Binding Machine is an essential addition for any business looking to produce high-quality, professional-grade books.
Key Features
- Advanced Glue Application: Compatible with Thermal PVA Glue and Planamelt Glue for optimal bookbinding results. The Planamelt R polymer glue offers advantages over traditional EVA hot melt, such as improved oxidation stability, better adhesion, and reduced odour.

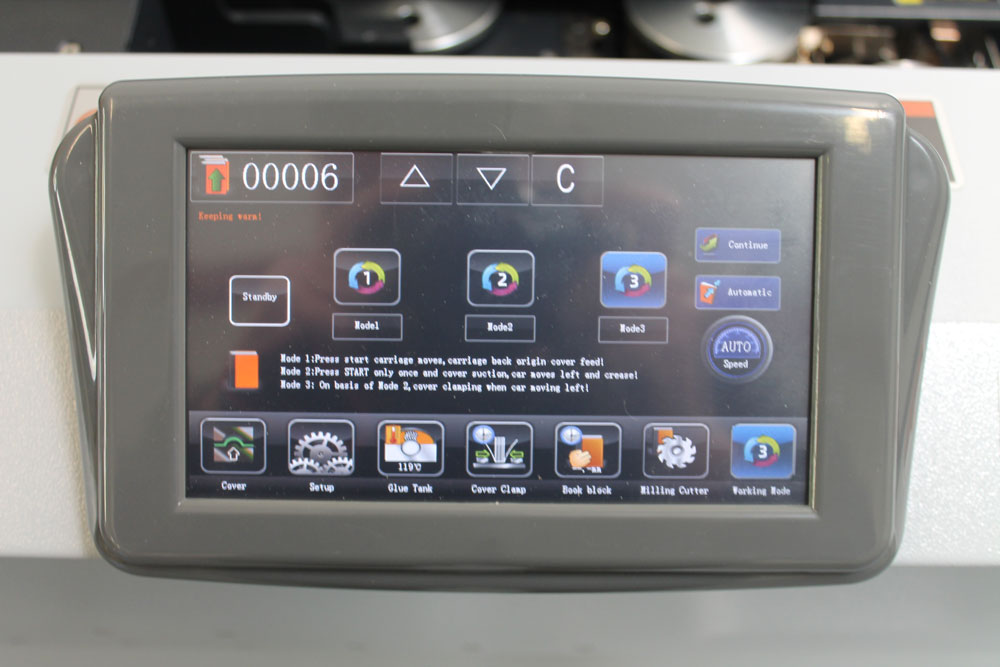

- Touchscreen Display: Easily set your binding parameters using the touchscreen interface, with 3 operating modes:
- Manual Mode
- Automatic Mode with Standby
- Automatic Mode with Return
- Glue Application System: The system includes a single lubrication roller and lateral glue application rollers, ensuring consistent glue distribution across the spine and edges for a professional finish.

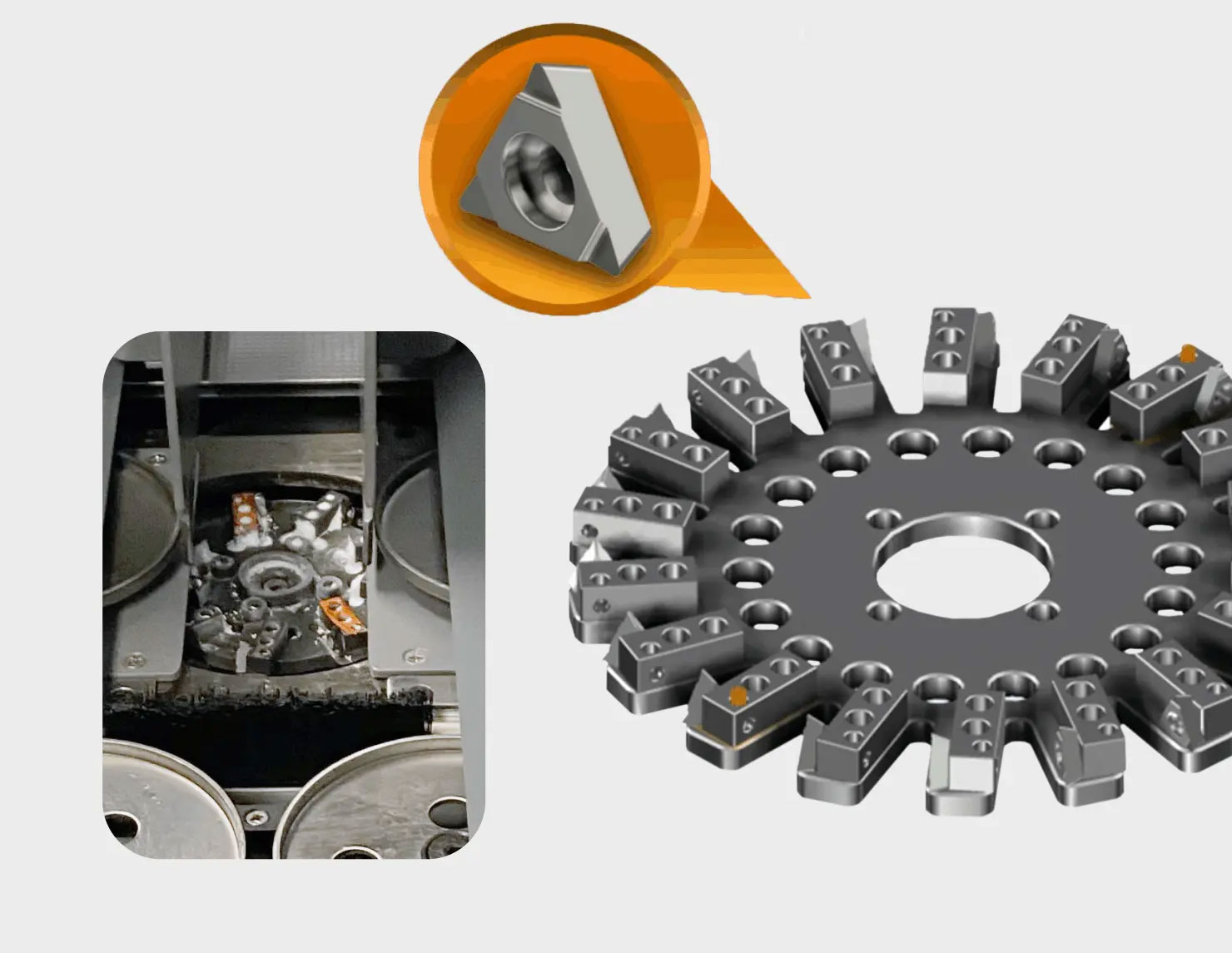

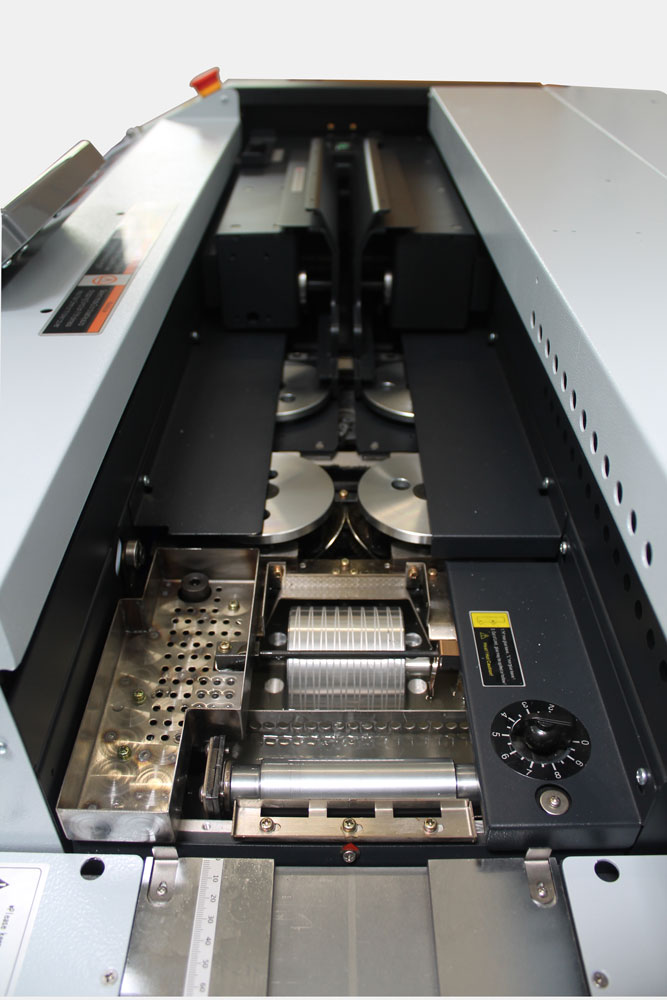

- Milling System: Features a 9-blade milling system with adjustable angles, ensuring precise and clean spine preparation before binding.
- Milling Dust Collector: Equipped with a dust collection system to minimize mess and improve the longevity of the blades.
- Cover Tightening Mode: Automatic tightening of the book covers during binding for perfect, uniform results every time.
- Quick Setup: The machine requires 30-45 minutes of warming-up time, and once ready, it can bind up to 250 books per hour, ensuring quick turnarounds for high-volume projects.
Technical Specifications
- Model: Perfect Binding Machine
- Maximum Working Length: 335 mm
- Maximum Binding Width: 60 mm
- Working Speed: Up to 250 books per hour
- Power: 220V
- Cover Insertion Mode: Manual
- Glue Application Mode: Automatic
- Milling System: 9 blades with adjustable angles
- Dust Collector: Yes
- Glue Tank: Secondary tank for side lubrication
- Dimensions (L x W x H): 130 cm x 67 cm x 108 cm (without packaging)
- Net Weight: 220 kg
- Warming-up Time: 30-45 minutes
How It Works
- Setup: Configure the machine using the touchscreen interface. Choose your desired operation mode (manual, automatic with standby, or automatic with return).
- Apply Glue: The automatic glue application system distributes the glue evenly across the spine and edges of the paper.
- Milling: The 9-blade milling system preps the spine, ensuring clean and precise binding.

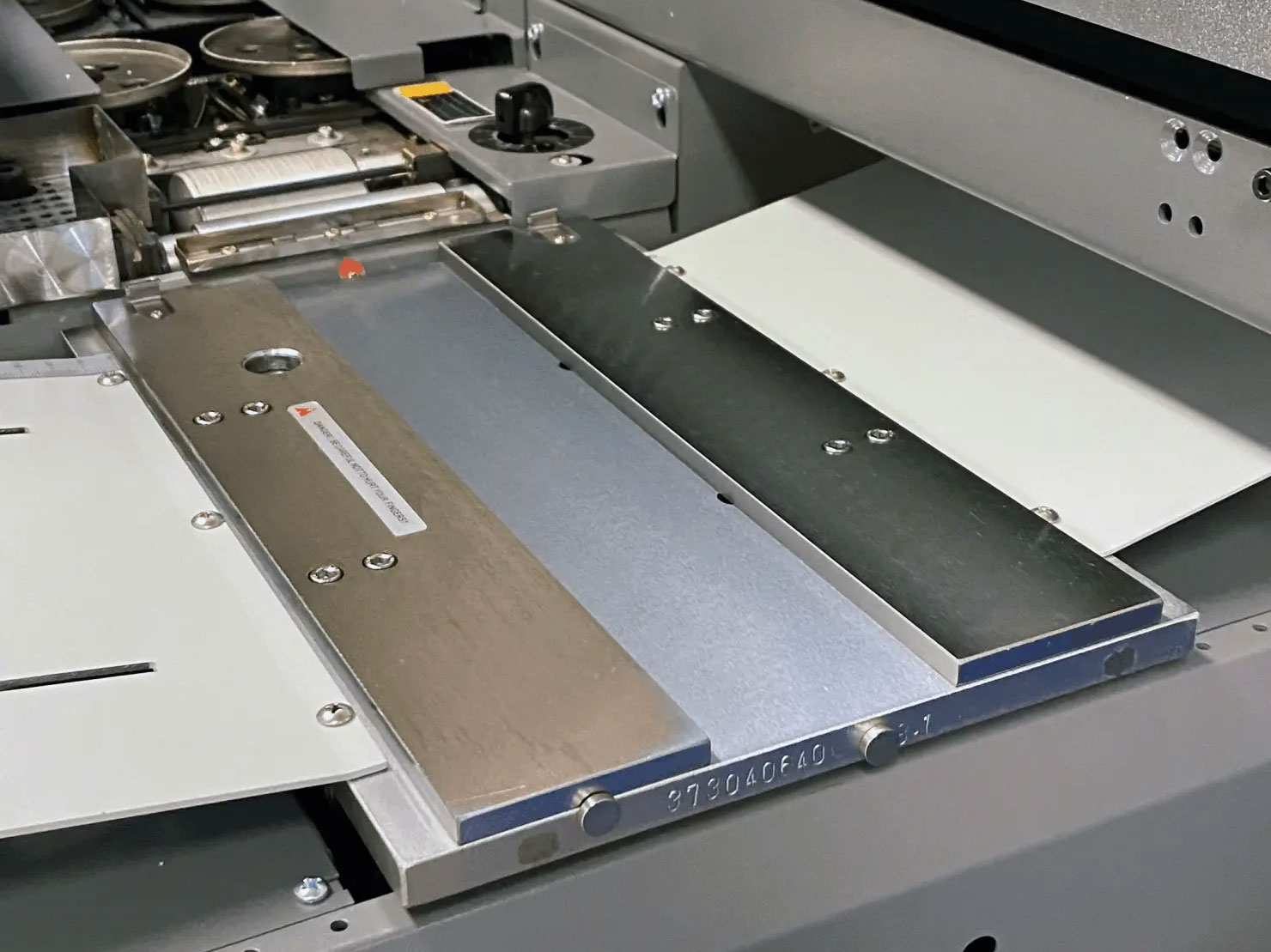

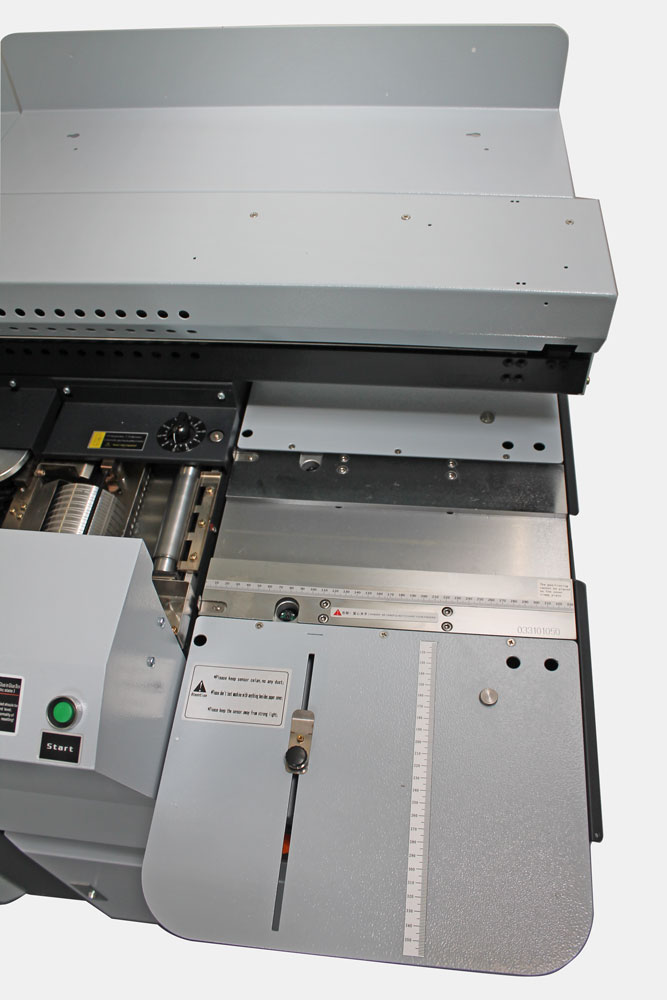

- Cover Insertion: Insert the cover manually, and the machine will automatically tighten the cover to ensure a firm bond.
- Binding: Once the cover is inserted and tightened, the machine binds the pages together to produce a professional-quality book.
Only logged in customers who have purchased this product may leave a review.
Frequently Asked Questions (FAQs)
What maintenance is required for the Perfect Binding Machine?
To keep the Perfect Binding Machine in top working condition, cleaning and greasing are required periodically. Lubricate the guide rails for the milling knife and the glue tank to prevent wear and ensure smooth operation. Always clean any residual glue to avoid build-up.
When does the blade need to be replaced or sharpened?
The milling knife is crucial for the quality of the binding. If you notice poor quality binding or the sheets no longer fit snugly on the spine, it’s time to replace or sharpen the blade.
Why do the sheets come away from the spine?
There are several potential causes for sheets coming away from the spine:
- Worn milling knife
- Poor-quality glue
- Insufficient glue application
What is the maximum capacity of the Perfect Binding Machine?
The machine can bind books up to 60 mm in thickness, making it suitable for a wide range of bookbinding tasks, from thin brochures to thicker catalogues.
What types of glue are compatible with the machine?
The Perfect Binding Machine is compatible with Thermal PVA Glue and Planamelt Glue, both of which ensure strong adhesion and durability for long-lasting bookbindings.
